Door Lock Sensor: Risks, Types, and Installation Tips

A resident reports that the front door is open, while the app says it's secure. You check the dashboard and see a clean access event, but the door has shifted slightly in its frame and the magnet no longer lines up. In a co-living property, that small installation problem can become a missed check-in, a false security alert, or a staff member making an unnecessary trip across town.

A door lock sensor should help you trust what your system reports. It shouldn't create a polished dashboard that hides uncertainty. The difference comes down to understanding what the sensor detects, where it can fail, and how your team verifies it before connecting the data to auto-lock rules, resident messaging, or property management software.

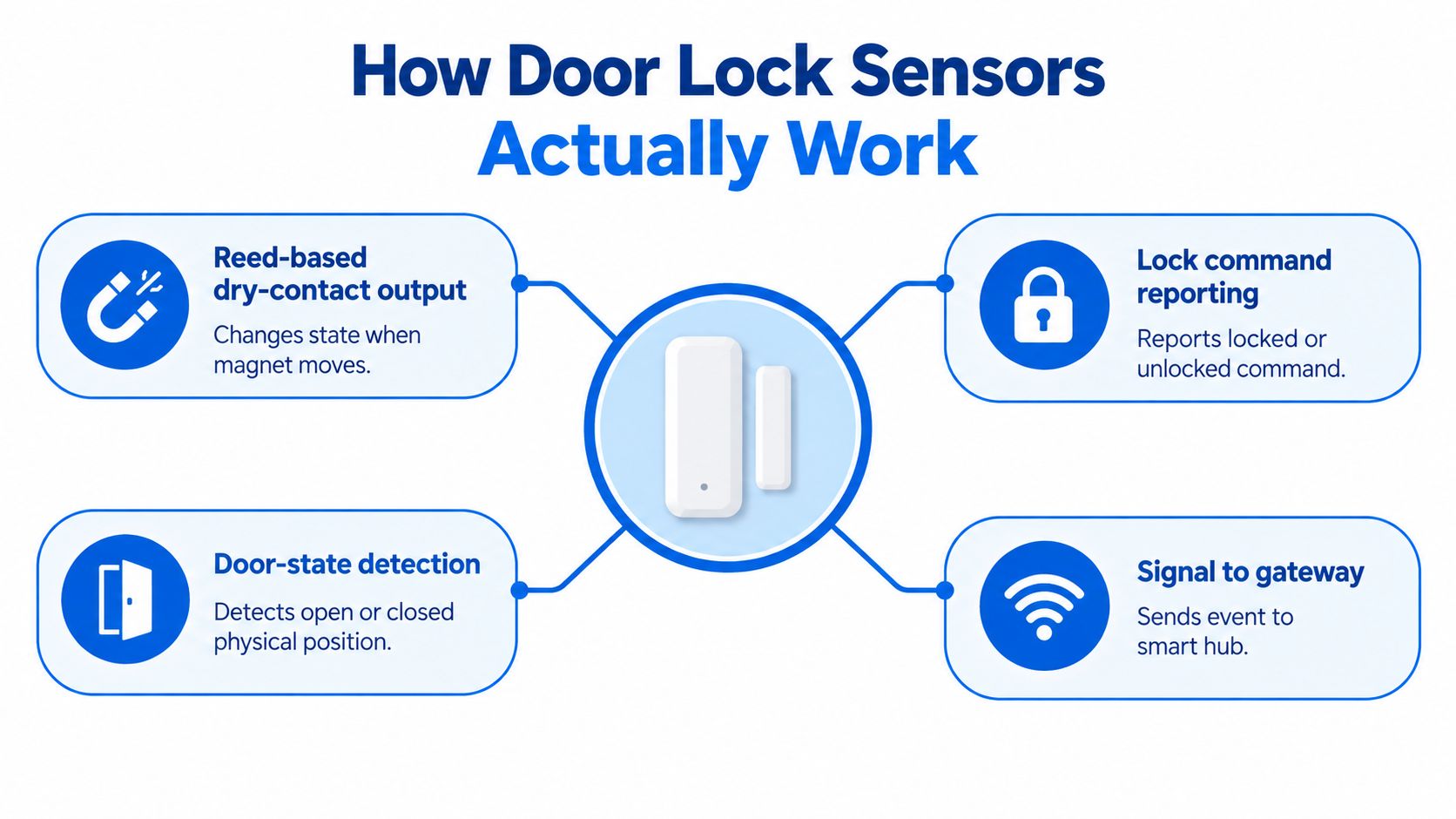

How Door Lock Sensors Work

A lock command can appear successful while the opening remains unsecured. In a shared house, a resident may pull the door shut, the smart lock may report a completed command, and the sensor may still show a state that does not match the physical hardware. The problem is often not the dashboard. It is the difference between an instruction, a mechanical position, and a signal reaching the access system.

A typical door lock sensor places a magnet beside a sensing element. As the door or lock mechanism moves, the magnet changes position relative to the sensor, and the electrical state changes. Many products use a reed-based dry-contact output, so they respond to physical movement rather than treating a lock command as proof that the door is secure. SDC's electromagnetic lock documentation describes this reed-based approach and the dry-contact principle used in lock-status sensing.

Consider a resident leaving a shared house. The smart lock receives a lock command and records it. That event confirms what the system was instructed to do. A separate door-state sensor can confirm whether the door is closed, while a lock sensor can provide evidence that the physical lock reached its expected position. These signals answer different operational questions.

Command state versus physical state

A lock command works like pressing a lift button. It records an intended request, not the final result. A misaligned bolt, obstructed strike plate, or poorly fitted door can prevent the lock from securing the opening even though the app displays a locked state.

Traditional door position switches commonly use an SPDT design with common, normally open, and normally closed terminals. An access-control panel, alarm system, door prop timer, or building management system can interpret those electrical states. American Locksets' explanation of door position switches outlines this arrangement.

Wireless devices add a radio link to a hub or gateway. Smart-lock sensors often use a CR2032 battery, with a typical two-year battery life and an open-area radio range around 210 m, according to the Homematic IP specifications. The product uses 868 MHz, IP20 protection, and a 5–35 °C operating range. The manufacturer's product page shows the trade-off: low power use and indoor operation, rather than protection for wet, exposed, or harsh locations.

For operators, the practical rule is simple. Match each automation to the signal it needs, then test the physical result at the door. A command confirms intent. A sensor confirms movement. Neither signal alone guarantees reliable access control.

Main Door Sensor Types and What They Detect

Choosing a door sensor starts with the question your operation needs answered. Do you need to know whether the lock received a command, whether the door is closed, or whether the physical locking mechanism reached its expected position? A product can be excellent at one of these tasks and unsuitable for another.

Lock-status sensors

A lock-status sensor is concerned with the position of the lock or a related mechanical part. The common design uses a magnet and reed contact. When the magnet moves into or out of the sensing range, the contact changes state.

Industrial versions may expose SPDT dry outputs rated at 250 mA at 30 VDC, while automotive-style reed implementations can be hermetically sealed and rated for operation from -50 °C to 150 °C. The SDC datasheet illustrates how the same basic sensing principle can appear in products designed for very different environments.

Those ratings matter when you connect a sensor to a panel or controller. Electrical loading can damage an unsuitable contact, while temperature and moisture can affect a device that was designed only for indoor use. In normal co-living rooms, alignment and mounting quality are usually more immediate concerns than extreme temperature. The specification still tells you whether the component belongs in a protected interior doorway or a more demanding installation.

Door-position sensors

A door-position sensor detects whether the door leaf is open or closed. It normally sits on the frame, with the magnet fixed to the moving door. When the door closes, the two parts come within the required sensing range.

This is the sensor you need for rules such as “send a reminder if the door stays open” or “confirm the door is closed before treating a departure as complete.” It doesn't necessarily prove that the deadbolt engaged. A closed door can still be left open.

Combined smart-lock sensors

Some modern products combine lock reporting with direct door-state detection. Nuki's Door Sensor, for example, uses a magnet and magnetic sensor to detect open and closed status, while its app displays both lock state and door state. The Nuki product documentation demonstrates why that distinction helps residents and operators avoid treating “locked” as a complete description of the entrance.

For a standard interior wooden door, a compact wireless contact sensor may be the simplest option. Steel doors, sliding doors, unusual frames, and doors with heavy movement need a compatibility check before purchase. Magnetic sensing is forgiving only when the sensor and magnet remain within the manufacturer's alignment range.

Why Door Sensors Are Scaling Across Smart Buildings

A co-living operator can have a working access-control dashboard and still lack a reliable picture of what happened at the door. A resident may receive a lock command, a cleaner may enter during an approved window, and a door may remain ajar afterward. That gap between system intent and physical events is driving demand for door sensing across connected buildings.

Door sensing has moved beyond a niche alarm accessory. It now supports remote operations, building automation, resident messaging, maintenance workflows, and records that staff can review after an incident. The market is also expanding. The market estimate from Market Intelo values the global door contact sensor market at $2.8 billion in 2025 and projects $4.8 billion by 2034, implying a 7.2% compound annual growth rate. It assigns wireless door contact sensors a 58.3% share and Asia Pacific 32.4% of revenue.

A separate Report Prime's market snapshot values the global door sensors market at $1,200.00 million in 2024 and forecasts $2,160.06 million by 2031, with an 8.76% CAGR. Its forecast places North America at about $365.00 million in 2025 and $560.00 million by 2031, while the U.S. market moves from roughly $280.00 million in 2025 to about $430.00 million by 2031. The report presents the category as suitable for retrofits and connected security systems.

What the growth means for operators

These figures support broader supplier investment, not a requirement to sensor every door. Wireless products can reduce cabling work, and compact battery devices make installation more practical in occupied properties. They also make procurement less forgiving. A device can appear compatible in a product listing yet fail because of a steel frame, poor magnet alignment, unstable mounting surface, radio interference, or a battery that staff cannot replace efficiently.

For co-living buildings, those failures affect trust in the access record. Repeated false open events create unnecessary checks, while missed events can leave staff believing a unit or shared entrance is secure when it is not. Operators should assess event accuracy, installation support, replacement logistics, battery access, and performance across the actual door stock before standardising a product.

Wireless deployment shifts work from cabling to maintenance. Teams must monitor battery condition, radio connectivity, and mounting stability, then define who responds when a sensor stops reporting. Scaling works only when those checks and escalation steps are part of the operating process.

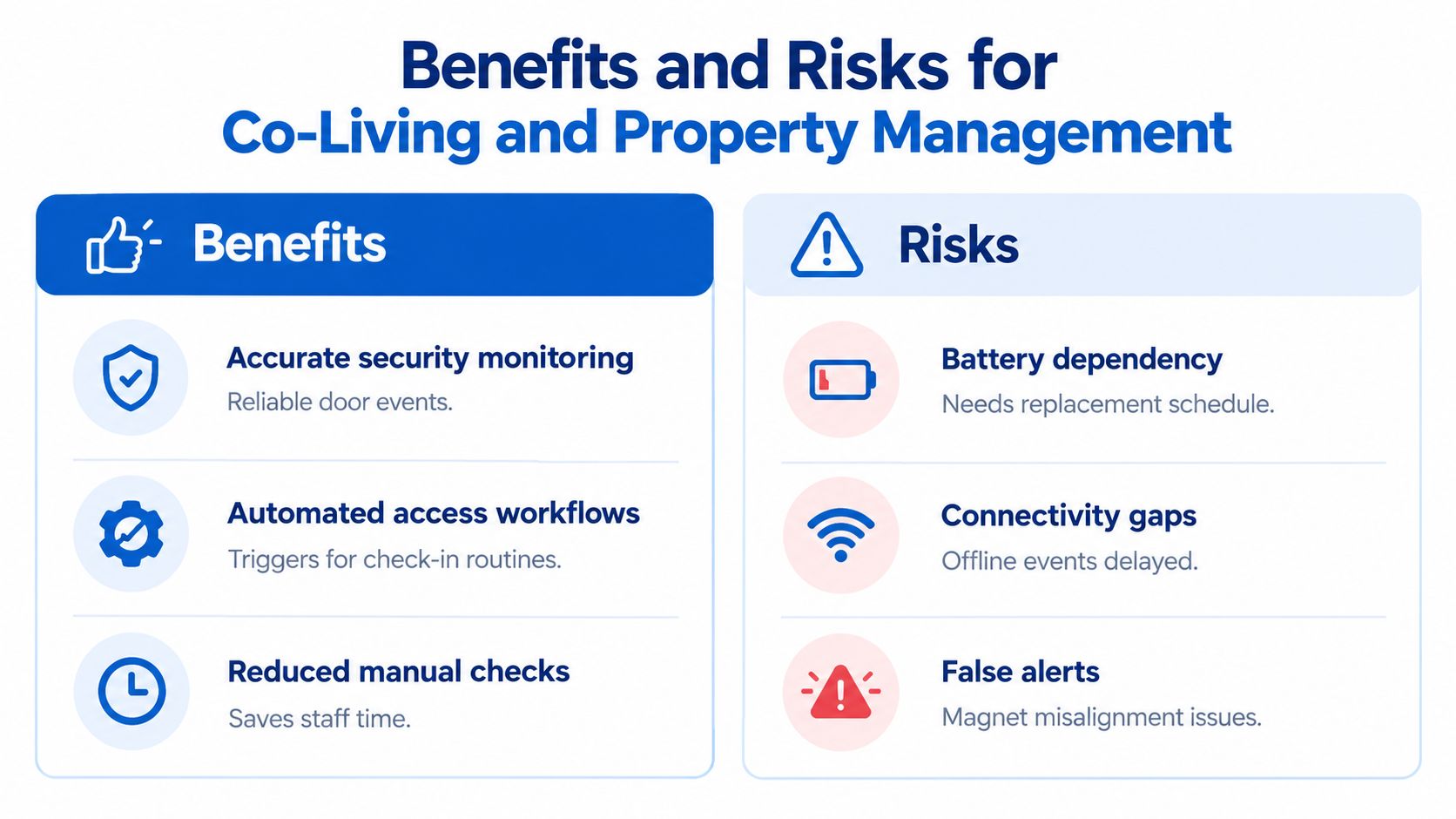

Benefits and Risks for Co-Living and Property Management

A resident arrives at a shared entrance, the lock accepts the credential, and the door fails to close fully. Without a door sensor, the access record may show a successful open while staff remain unaware of the open entrance. With accurate door events, managers can confirm resident access, cleaners can receive time-limited entry, and automated workflows can separate an expected arrival from a door left open after departure.

Lock commands describe intended action. Sensor events show what the door did. That distinction matters in co-living buildings, where residents, vendors, and staff may depend on the same record and where a small reporting error can trigger unnecessary checks or missed follow-up.

Where sensors help

• Security monitoring: A physical door event gives staff a more useful signal than a lock command alone.
• Automated workflows: A verified closed-door event can support check-in, departure, maintenance, and vendor-access routines.
• Reduced manual checks: Staff can investigate exceptions instead of visiting every unit just to confirm that a door was used.
• Operational records: Door events can help explain why a resident could not enter or why a scheduled service visit did not proceed as expected.

Rules in a remote access control system are more reliable when they use both lock state and door state. Operators planning that broader workflow can review this overview of remote access control systems.

Where sensors create risk

The main danger is false confidence. Installation guidance identifies magnet alignment, gap distance, calibration, and mounting quality as causes of inaccurate app and auto-lock states. The troubleshooting guidance from SlockHub reflects a common property-operations failure: the dashboard appears normal while the hardware no longer reports the door's physical condition correctly.

Battery dependency adds another failure path. A depleted battery can make a door appear offline or delay an event. Connectivity gaps can produce stale information, while loose adhesive and repeated door movement can shift the magnet out of range. False alerts eventually train residents and staff to ignore notifications, creating an operational problem even when the device is working as designed.

Test each opening before enabling automation. Open the door, close it, lock it, release the lock, and verify every state in the app. Procurement teams should also confirm battery access, mounting tolerances, replacement logistics, and support for the building's actual door stock.

Integrating Door Lock Sensors with Smart Locks and PMS Platforms

A resident can report that a door was locked while the PMS shows only a lock command. Those records are not equivalent. A reliable access workflow distinguishes the door's physical state, the lock's position, and whether the event reached the gateway and PMS.

Modern smart-lock door sensors add direct door-state detection to lock reporting. Nuki's example shows open or closed alongside secured or unsecured in the app. That distinction helps residents, remote staff, and automated workflows respond to the condition that matters.

Turning events into operations

A PMS can use sensor events for several operational tasks:

• Check-in workflows: Confirm that a resident has entered before sending the next onboarding message.
• Maintenance access: Give a vendor a scheduled window and verify that the door opened during the appointment.
• Exception handling: Flag a door that stays open or produces an unexpected event sequence.
• Portfolio analytics: Compare access activity with occupancy, maintenance records, and resident communications without treating every event as proof of a completed lock.

The integration fails when platforms assign different meanings to the same event. Procurement teams should ask whether “locked,” “door closed,” “command sent,” and “event received” are stored as separate states. They should also confirm how duplicate events, delayed messages, gateway outages, and offline devices appear in the PMS. Operators planning the wider workflow can use our guide to access control integration.

Trusted event data can support dynamic pricing, automated messaging, portfolio analysis, and smart-home connections such as keyless locks and smart thermostats. These uses depend on clear timestamps, retained event history, and an obvious offline status. A green dashboard indicator should not be treated as proof that the door is physically secure.

PadPulse is being developed for room-by-room and co-living operations, with planned tools for dynamic pricing, automated messaging, smart-lock and thermostat integrations, financial visibility, and portfolio analytics. Operators should confirm how each integration defines, stores, displays, and escalates an event before connecting it to resident or staff workflows.

This short video walks through how connected access workflows fit into a property technology stack and gives operators a visual reference for the handoffs between systems.

Privacy also requires a defined operating policy. Sensor feeds can reveal entry patterns, staff visits, and vendor activity. Limit access to people who need it, set retention rules, and explain which events the property records and why.

Installation Constraints and Compatibility Across Door Types

Showroom doors are predictable. Co-living buildings aren't. You may have older timber frames, steel security doors, sliding entrances, uneven thresholds, fire doors, and doors that have settled enough to change the gap between the frame and the leaf.

Magnetic sensors need the right relationship between two parts. Vendor installation guidance shows that some systems don't support sliding or steel doors because the material and movement can interfere with magnetic-field sensing. Even on supported doors, the required sensor-to-magnet distance may be tight, such as 0.5 to 3 cm. Nuki's door-sensor installation examples show why a product that works on one wooden door may require an exception on another opening.

Check the door before you buy

Walk through the property and group doors by construction and movement. For each group, record:

• Door material: Note whether the leaf or frame is steel, timber, glass, or another material that may affect sensing.
• Movement: Separate hinged, sliding, outward-opening, and inward-opening doors.
• Available mounting area: Check whether both sensor parts can sit flat and remain within the required gap.
• Frame condition: Look for loose trim, swelling, sagging, or a strike plate that already needs adjustment.
• Access to the battery: Confirm that staff can replace the battery without damaging the mount.

Surface mounting usually reduces installation effort because it avoids drilling additional holes. Flush mounting can look cleaner, but it adds drilling and makes repositioning less convenient. Philips' manual identifies both methods and recommends surface mounting in situations where avoiding extra holes is preferable. It also requires the smart lock and sensor to be calibrated together in the app after installation. The Philips Door Position Sensor manual provides that installation guidance.

Door swing direction can change magnet orientation. Ask the vendor for a mounting diagram for inward and outward openings, then test the door through its complete movement. Don't assume that an adhesive pad placed near the latch will remain aligned after repeated use.

A property-wide survey is more valuable than a product demo. Before committing to a rollout, ask the supplier which doors require custom brackets, whether steel and sliding doors are supported, what the acceptable gap range is, and how exceptions are documented. A keyless-entry setup for a rental property should include those door-level checks before access codes are issued. This guide to keyless entry for rental property offers useful context for planning that broader deployment.

Troubleshooting Sensor Errors and False Readings

A sensor can pass its first installation test and fail later. Doors move, adhesive loosens, frames settle, batteries drain, and residents push or pull against a latch that doesn't align cleanly. Treat troubleshooting as routine maintenance, not as proof that the technology is unreliable.

Start with the physical opening, not the app. Operate the door slowly and watch whether the magnet and sensor approach each other in the expected position. Then compare the physical condition with the reported state.

A repeatable verification routine

1. Test the open position. Open the door far enough for the sensor to leave its normal range, then confirm the system reports open or unsecured as appropriate.
2. Test the closed position. Close the door without forcing it and verify that the door-state event changes.
3. Test the lock separately. Engage and disengage the mechanism while the door remains properly closed.
4. Inspect the gap. Compare the current spacing with the vendor's installation requirement. A small shift can move the magnet outside the sensing range.
5. Check the mount. Press gently around the sensor and magnet. Any movement means the adhesive, screws, frame, or mounting surface needs attention.
6. Calibrate again. Run the manufacturer's calibration process after repositioning or adjusting the lock.

Practical rule: Don't enable auto-lock as a security control until the sensor reports the expected physical state through repeated open, close, lock, and unlock tests.

The common errors are predictable. Misalignment makes the magnet appear absent. Excessive gap distance prevents a state change. Poor calibration causes the app to interpret a correct physical position incorrectly. Loose mounting lets normal door movement turn a previously accurate setup into an intermittent one.

Keep a simple maintenance record for each opening. Note the door identifier, installation position, battery replacement, calibration, and the last successful physical test. When a resident says the app is wrong, staff can compare the current setup with the recorded position instead of replacing hardware immediately.

Procurement Checklist and Next Steps for Operators

A reliable purchase decision starts with the building, not the product page. The sensor must fit the door, communicate with the lock or hub, and produce an event your team can interpret. A low price won't compensate for repeated exceptions or unreliable access records.

Use this checklist before signing a rollout agreement:

• Confirm compatibility: Verify the exact smart-lock generation, hub, operating environment, door material, and door movement supported by the sensor.
• Check orientation rules: Nuki states that its Door Sensor connects with Smart Lock variants from the third generation, while older versions aren't supported. It also specifies a parallel magnet position for best recognition, or a 90° angle when the door opens outward. Nuki's product requirements show why model generation and mounting direction belong in the procurement record.
• Pilot representative doors: Test standard timber doors alongside steel, sliding, outward-opening, and difficult frames. Don't pilot only the easiest unit.
• Define the event: Decide whether your PMS needs lock command, physical lock position, door position, or a combination of signals.
• Plan maintenance: Assign responsibility for battery checks, calibration, loose mounts, offline devices, and resident-reported errors.
• Review privacy: Document who can view access events, how long records remain available, and how residents and vendors are informed.
• Set escalation rules: A failed sensor shouldn't automatically open a workflow. Route uncertain states to a manual review or a staff notification.
• Measure trust before scale: Expand only after the pilot produces consistent results across every tested door type.

A small pilot also exposes installation labor and exception rates before they affect the entire portfolio. Give staff a written test routine, take photographs of successful mounting positions, and keep approved alternatives for doors that cannot use the standard configuration.

The right door lock sensor is not merely the one that reports the most events. It is the one that reports a physical condition accurately enough for people and software to act on it. Build procurement around that standard, and smart access becomes an operational tool rather than another source of uncertainty.

---
